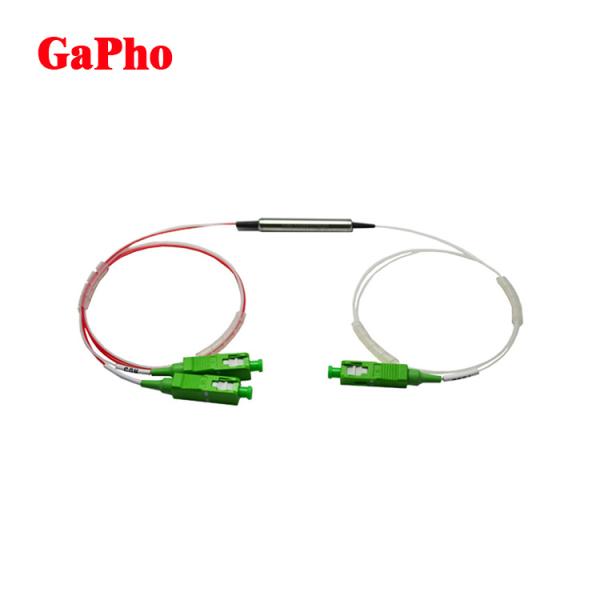

Filter Multi-Mode Splitter (FMMS) 850/1310 nm Difference Coupling Ratio 250 um bare fiberB Filter mm splitter.docx
Features
- Low Insertion Loss
- Difference Coupling Ratio
- High Stability and reliability
Application
- Multi-mode fiber communication systems
- LAN
specifications
| Type Parameter | 850/1310 |
| Operating wavelength (nm) | 850 or 1310, or 850/1310 |
| Operating bandwidth (nm) | ±50 |
| Insertion Loss(dB) | 50/50% | ≤3.9/3.9 |
| 10/90% | ≤11.3/1.1 |
| 5/95% | ≤14.5/0.9 |
| Directivity (dB) | ≥38 |
| PDL (dB) | ≤0.1 |
| Wavelength thermal stability (nm/℃) | ≤0.003 |
| Insertion loss thermal stability(dB/℃) | ≤0.005 |
| Power handling (mW) | ≤500 |
| Operating temperature (℃) | 0 ~ +70 |
| Storage temperature (℃) | -40 ~ +85 |
| Fiber type | 50/125 or 62.5/125um |
| Dimensions (mm) | φ5.5×L34 |
Package dimension
ordering information
| FMMS | Port Type | Wavelength | Coupling Ratio | Pigtail Type | Fiber Type | Length | Connector |
| | 1x2 | 850 | 50/50% | 250=250um | 2=50/125 | 1= 1m | NE=None |
| | 1310 | 10/90% | bare fiber | 3=62.5/125 | | FA=FC/APC |
| | 850/1310 | 5/95% | 900=900um | | | FC=FC/UPC |
| | | 1/99% | loose tube | | | SA=SC/APC |
| | | | 3000=3mm | | | SC=SC/UPC |
| | | | loose tube | | | LC=LC/UPC |
| | | | | | | LA=LC/APC |
| | | | | | | XX=Others |
company prolife
We are specialized in providing solutions for optical cable, packaging solutions for optical devices, and manufacturing of other electronic equipment parts. Our products are widely used in optical communication, electronics, medical care, oil pipeline, audio industrial control, radio, instrumentation and other industries.We have a good design and production team to provide customers with high-quality, reliable and efficient products.
In the process of cooperation, our innovation and service awareness are well received by our customers.
The company specializes in the production of optical communication equipment, optical devices, optical jumpers, distribution boxes, distribution frame.Our company
1.Machinery department: provide precision machinery processing, sheet metal parts processing, plastic injection molding processing, processing and manufacturing supporting various parts.
2. Optical communication department: provide customized processing of optical devices such as optical jumper, optical module, optical switch, wave divider, attenuator adapter, coupler, optical splitter, circulator, isolator, collimator, optical amplifier, etc.
Packaging & Shipping
According to the customer's requirement.
We can provide packing according to customer's requirement, quantity, weight and volume.
Our Services:We can provide customized products for customers. We only need to provide requirements, samples, specifications, drawings, etc.
FAQ
Q:Can you design and customize production according to my requirements
A:Yes, you can tell us your requirements and ideas, we can design drawings, or provide samples, 2D floor plans or 3D drawings (support proe, solidwork, core, Auto CAD, DXF, DWG, step file formats).
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q:What certificate we have?
A: ISO 9001: 2015, RoSH, CE, High and New Tech Enterprise Certficate.
Q: What is your delivery date?
A: The delivery date is approximately 3-5days, depending on the order quantity.
.
